VideoReQuest Control of Switchers

and Receivers for Video Distribution

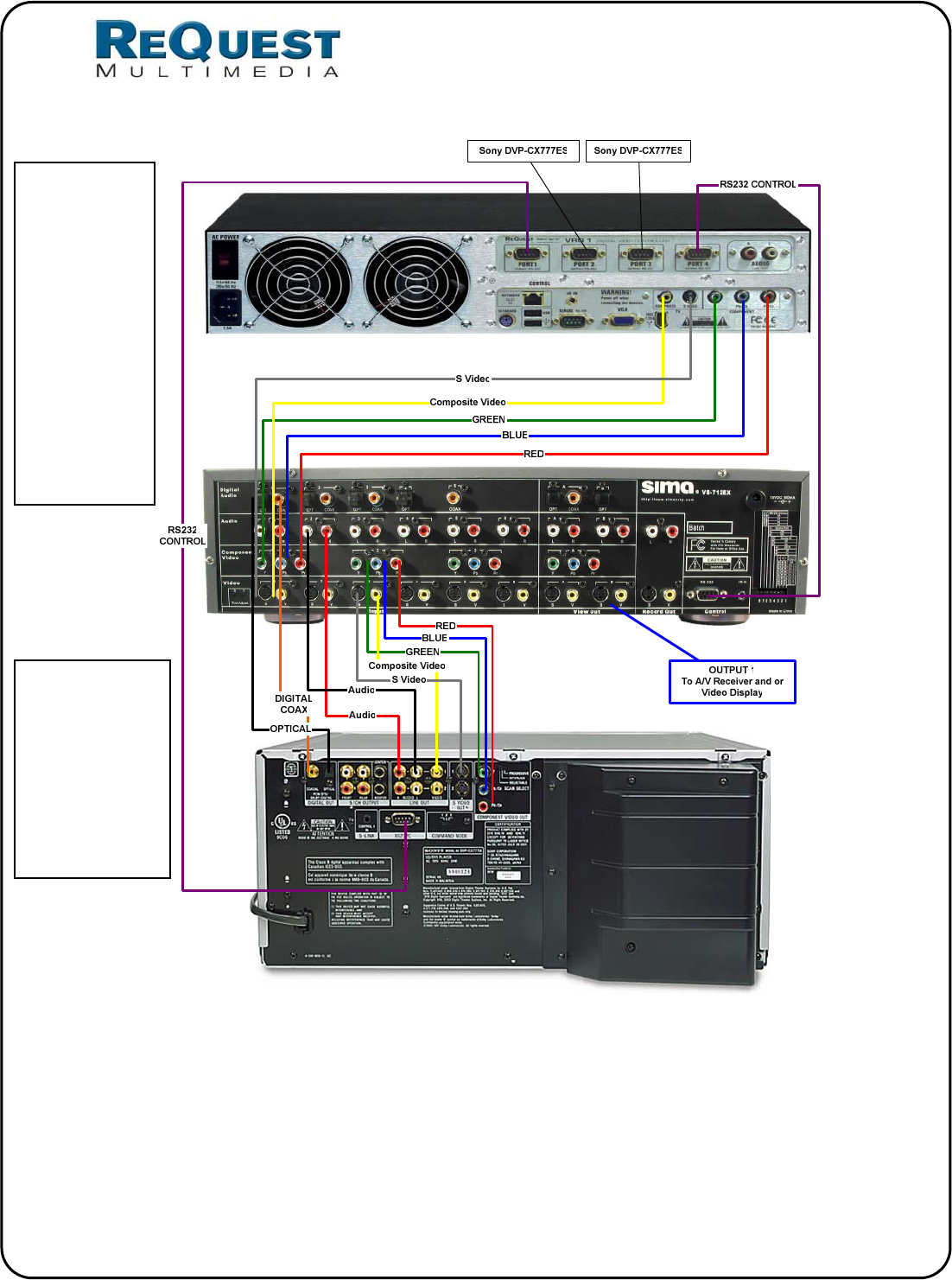

VideoReQuest with a Sima Switch

1) Connect the VideoReQuest Audio and Video to Input 1 of the switch.

2) Connect 1-3 DVD Changers’ Audio and Video to Inputs 2-4.

3) Connect the RS-232 cable from the DVD changers to ports 1 – 3 of the

VideoReQuest.

4) Connect Port 4 of the VideoReQuest to the RS-232 Port of the switch.

5) In the VideoReQuest Menu, go to Video Switch setting to set the appropriate

switch.

Sima Switch

Pro:

Simultaneous

Composite &

Component

Switching

Upscale

Composite &

S-Video to

Component

Con:

Only 3

Component

Inputs

NOTICE:

If you run

VideoReQuest

in 720p mode,

DO NOT

connect the

S-Video cable

as it will degrade

the quality of the

output.
